Standardized Used Trucks Remanufacturing Process Workflow
Introduction
Used trucks remanufacturing process is a rigorous, standardized industrial reproduction process that transforms retired high-hour heavy-duty trucks into vehicles with near-new performance, safety and reliability.
Different from simple refurbishment or partial repairs, professional heavy truck remanufacturing workflow follows complete industrial procedures, covering vehicle evaluation, full disassembly, deep cleaning, flaw detection, component renewal, system calibration, standardized assembly and full-load testing.
Every REMAN ROAD Used trucks remanufacturing process is executed under ISO and OEM-level standards to eliminate all hidden wear and structural fatigue, ensuring each finished remanufactured truck delivers stable heavy-load working performance for mining, construction and logistics fleets.
Step 1: Incoming Vehicle Inspection & Condition Evaluation
The entire used trucks remanufacturing process starts with strict vehicle screening and evaluation. Our technical team records the original truck’s working hours, operational history, engine condition, chassis deformation degree and core system wear.
Vehicles with irreparable structural damage or severe metal fatigue are eliminated directly. For qualified units, we formulate targeted remanufacturing schemes based on actual wear conditions, ensuring personalized and standardized technical restoration for each truck.
Step 2: Complete Full-Vehicle Non-Destructive Disassembly
Different from superficial refurbishment, heavy truck remanufacturing workflow requires full disassembly down to individual bolts, bearings and sealing parts. The whole vehicle is divided into six core modules: frame chassis, engine system, transmission assembly, drive axle and walking system, hydraulic and brake system, and electrical components.
All disassembled parts are numbered, classified and recorded systematically to ensure full traceability in the subsequent repair and assembly process.
Step 3: Deep Cleaning & Comprehensive Flaw Detection
All structural parts and precision components undergo professional deep cleaning. Large frame and chassis parts are treated with sandblasting and high-pressure cleaning to remove rust, oil sludge and old paint.
Precision engine parts, hydraulic valves and gear components are cleaned by ultrasonic equipment to clear internal oil passage dirt and metal debris.
After cleaning, every load-bearing structure and core component undergoes strict non-destructive testing.
Technicians inspect for hidden fatigue cracks, deformation, gear wear and metal material attenuation, completely eliminating invisible safety hazards that cannot be found in ordinary used truck inspections.
Step 4: Structural Repair & Chassis Reinforcement
The frame, longitudinal beams and cross beams are key load-bearing structures for heavy-duty transportation. All deformed chassis parts are precisely corrected through hydraulic calibration to restore original flatness and structural balance.
Fatigue cracks are repaired with structural welding, and stress concentration positions are reinforced with wear-resistant steel plates. This standardized trucks remanufacturing step ensures the overall structural strength reaches new factory standards, adapting to long-term full-load and bumpy road operation.

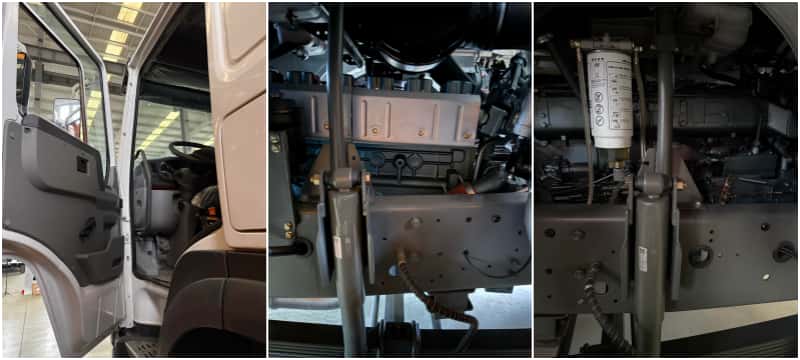

Step 5: Core System Overhaul & Component Renewal
All aging and fatigued vulnerable parts are 100% replaced with brand-new qualified accessories, including oil seals, bearings, piston rings, friction plates, suspension rubber parts and aging wiring harnesses.
The engine is fully overhauled and calibrated to restore rated power and fuel economy.
The gearbox and drive axle are disassembled, cleaned and adjusted to eliminate gear clearance deviation and power slipping.
The hydraulic lifting system and air brake system are fully renewed and debugged to ensure sensitive response, stable pressure and zero leakage.
Step 6: Standard OEM Assembly & Electrical System Upgrade
Reassembly is carried out strictly in accordance with OEM assembly sequence and standard torque parameters.
Every bolt is tightened and recorded to avoid loose assembly or stress deviation.
Meanwhile, aging instrument panels, sensors and whole-vehicle wiring harnesses are replaced.
The entire electrical system is upgraded and calibrated to ensure accurate data display, stable signal transmission and sensitive operation control.
Step 7: 72-Hour Full-Load Durability Simulation Test
Before delivery, every REMAN ROAD remanufactured truck must pass uninterrupted full-load cycle tests.
We simulate real working scenarios including full-load climbing, long-distance constant-speed driving, frequent start-stop operation, repeated hydraulic lifting and continuous braking fatigue tests.
All indicators including power performance, fuel consumption, braking stability, hydraulic tightness and driving smoothness are verified strictly.
Only trucks that fully meet REMAN ROAD heavy truck remanufacturing standard can pass factory acceptance.

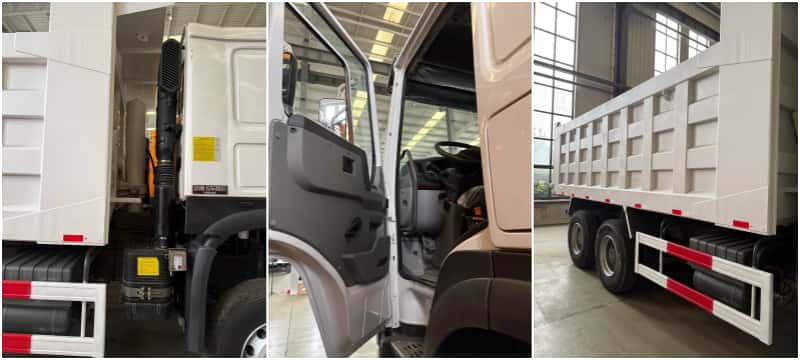

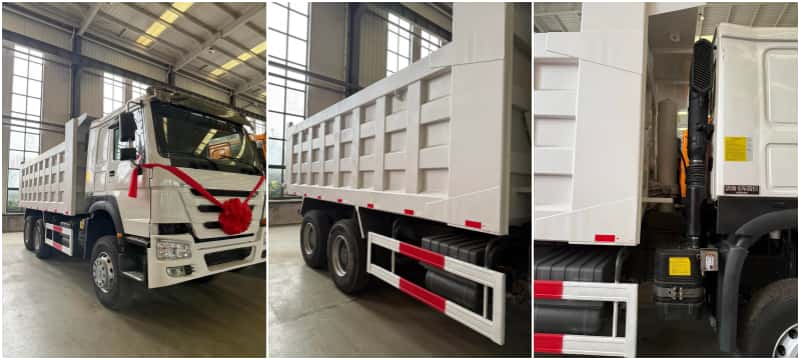

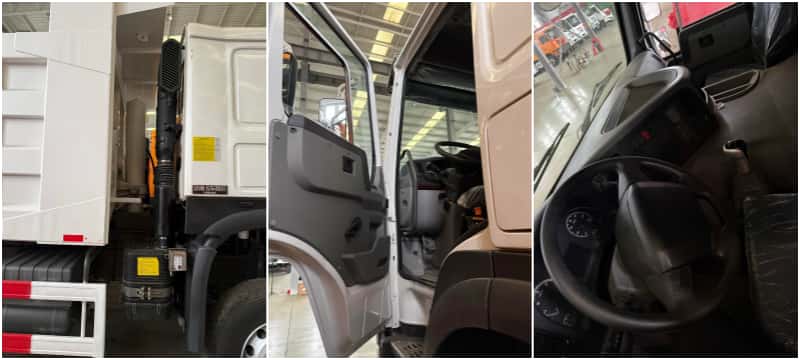

Step 8: Anti-Corrosion Painting, Finishing & Quality Archiving
Qualified vehicles undergo multi-layer professional painting treatment, including anti-rust primer and wear-resistant topcoat, improving corrosion resistance and outdoor durability.
The whole vehicle appearance and interior finishing are polished and optimized to achieve uniform and neat factory-level presentation.
Finally, we sort out all used trucks remanufacturing process records, flaw detection reports, parts replacement lists and test data to form complete digital quality archives.
Each REMAN ROAD remanufactured truck is equipped with independent traceability information and official after-sales warranty support.
Conclusion
Professional REMAN ROAD used trucks remanufacturing processis a complete industrial reproduction system, not simple renovation or cosmetic repair.
Through standardized trucks remanufacturing disassembly, detection, structural reinforcement, core system renewal and strict full-load testing, REMAN ROAD remanufactured trucks completely get rid of the aging defects of used vehicles.
With stable new-machine performance, controllable cost and traceable quality, remanufactured trucks have become the most cost-effective heavy equipment solution for global construction, mining and logistics fleets.
